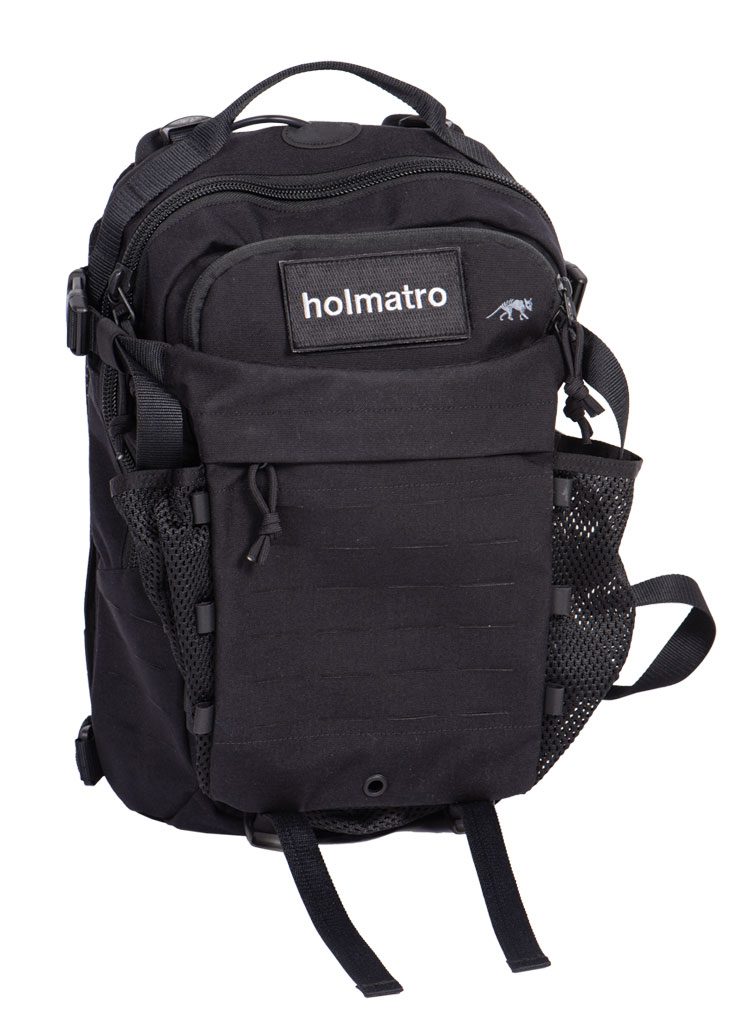

Backpack Pump GBP10EVO3

Description

Item

Description

SPECIFICATIONS

Details
Articlenumber	151.001.496
Basic specifications
model	GBP10EVO3
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
battery included	no
Performance
number of stages	2
capacity oil tank (effective)	425 cc	14.4 oz
protection rate	IP54
directives	2006/42/EC, 2014/30/EU
General specifications
pump type	axial piston pump
operator type	battery
number of tool connections	1
number of tools simultaneously usable	1
engine	28 VDC – 700 W
Dimensions, weight and temperature
weight, ready for use	7.5 kg	16.5 lb
weight (excl. battery)	6.5 kg	14.3 lb
dimensions (AxBxC)	380 x 240 x 120 mm	15 x 9.4 x 4.7 in

FEATURES

Very portable

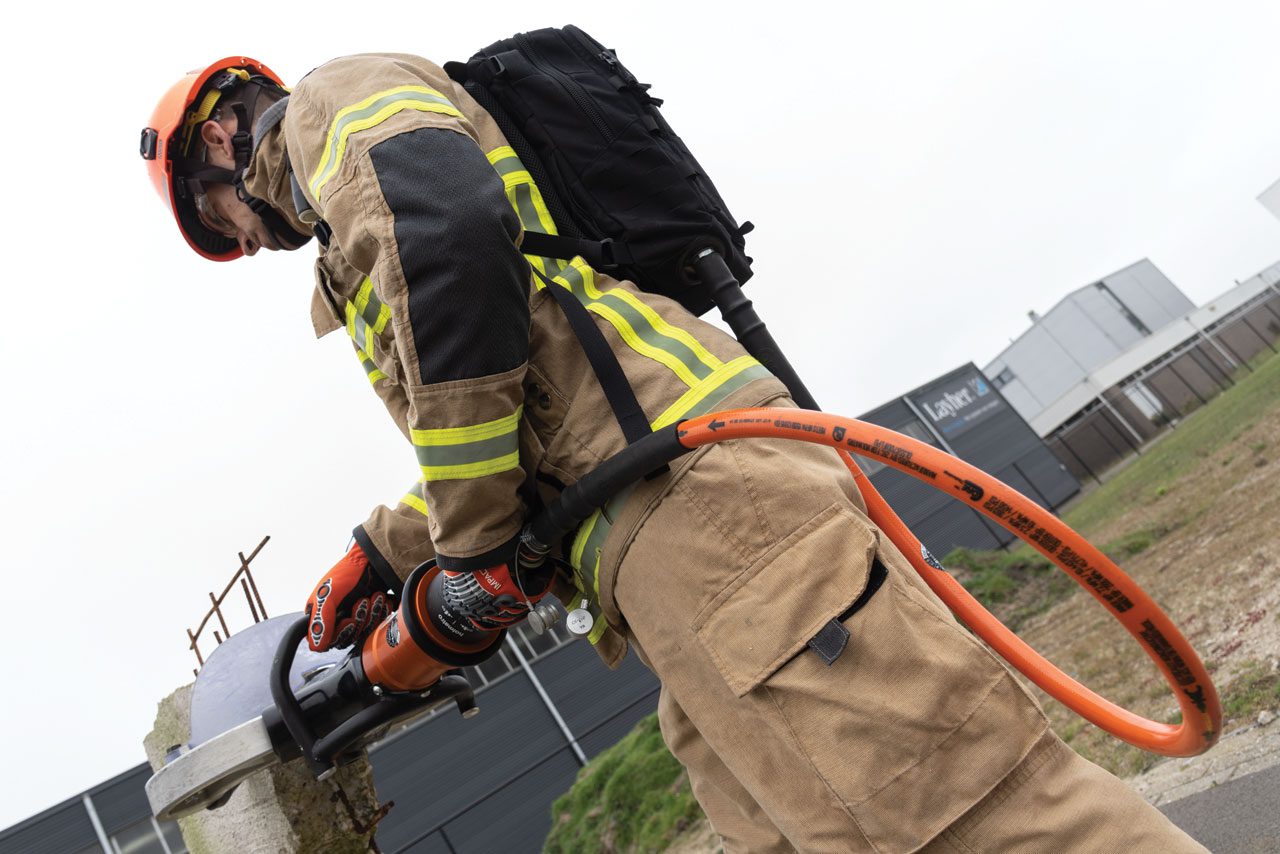

The pump is compact, lightweight and contained in a backpack
Proven EVO3 technology
Battery used for the pump is the same as is used for all other Holmatro EVO3 tools.
Large oil content
Pump can be used with all CORE tools except 15t and 22t telescopic rams.
Safe to use in harsh environments
Thanks to IP 54 rating: Protection against dust and splashing of water
Emission-free
Ideal for use in confined and/or underground spaces
