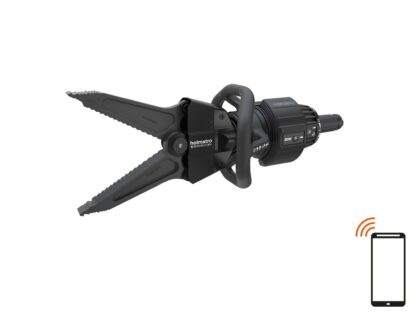

Combi Tool PCT17ST

Description

Item

Description

SPECIFICATIONS

Details
Articlenumber	151.002.419
Basic specifications
model	PCT17ST
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
battery included	no
Performance
max. spreading force	1350 / 137.7 (kN/t)	303492 lbf
min. spreading force (EN 13204)	28 / 2.9 (kN/t)	6295 lbf
spreading distance	431 mm	17 in
max. cutting opening	352 mm	13.9 in
max. squeezing force	27 / 2.8 (kN/t)	6070 lbf
protection rate	IP57
directives	2006/42/EC, 2014/30/EU, 2014/53/EU
theoretical cutting force	268 / 27.3 (kN/t)	60249 lbf
Dimensions, weight and temperature
weight (excl. battery)	12.8 kg	28.2 lb
dimensions (AxBxC)	776 x 270 x 275 mm	30.6 x 10.6 x 10.8 in
weight, ready for use (incl. battery)	14.4 kg	31.7 lb
Norms
EN 13204 classification	BK28/431E-14.4
NFPA 1960, cutting capacity	A5 B5 C4 D6 E4 F3
NFPA 1960 compliant	yes
EN 13204, cutting capacity	1E 2E 3E 4E 5E
EN 13204 compliant	yes
NFPA 1960, HPF	27 / 2.8 (kN/t)	6070 lbf
NFPA 1960, HSF	32 / 3.3 (kN/t)	7194 lbf
NFPA 1960, LPF	18 / 1.8 (kN/t)	4047 lbf
NFPA 1960, LSF	25 / 2.5 (kN/t)	5620 lbf
Cutting performance
round bar (S235 acc. to EN 13204)	24 mm	0.9 in

FEATURES

Unparalleled speed for faster ST operations

Fastest combi tool on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode

Ultimate speed control for more controlled tool handling

Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times

Guaranteed maximum power during a tool’s entire lifespan

Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool

Minimum sound level for maximum stealth properties

Automatic engine start and stop – If the tool is switched on, the engine will start when you turn the control handle, and stops when you release the handle

Battery management made easy

Charge batteries directly on the tools with the On-Tool Charging System
Priority charging for on-tool batteries over batteries on a separate charger
Charge up to six batteries automatically – Connect up to three chargers to one single outlet
Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products

Superb ergonomics for effortless handling

Easy tool operation – Inline control handle with 360° access
Hold every tool in any position – 360° carrying handle made of tough, damage-proof material

Continue your mission under all conditions

Flawless performance under water, at high and low outdoor temperatures and in rain and snow
Easier communication during ST operations – A new and improved drive system ensures tool operation at a lower sound level
Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually

Realtime tool insights to adapt and change tactics

Connect every tool to your tablet or phone with Bluetooth®
Easy to use and intuitive MyHolmatro app
Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode

Automatically keep your tools in perfect condition

Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
Effortless tool maintenance
Premium tool service thanks to the Holmatro Inspection Procedures (HIP) – An extensive software program for Authorized Holmatro (Dealer) Service Technicians
