ISC HaulerBiner
$235.95 – $289.95

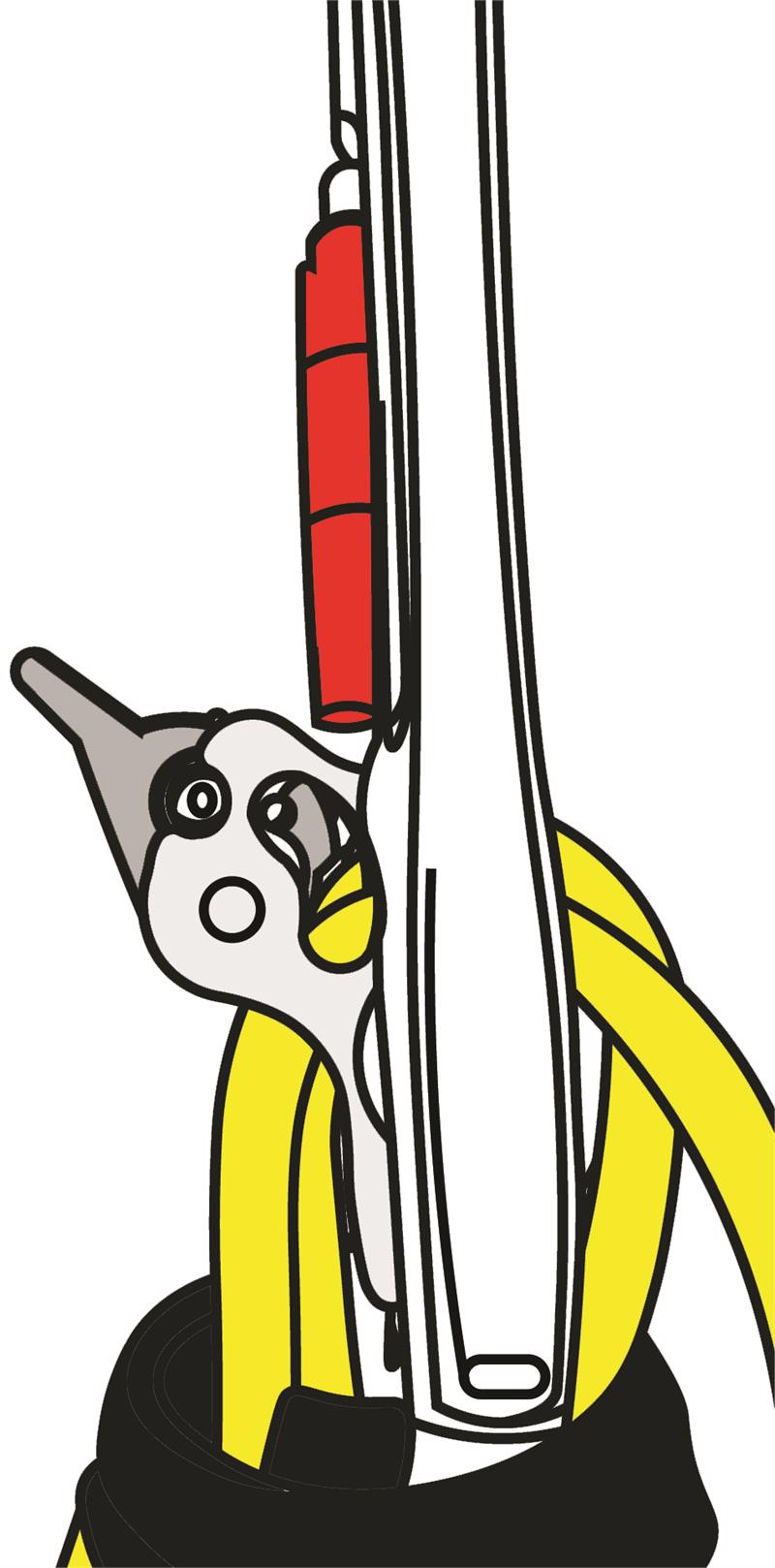

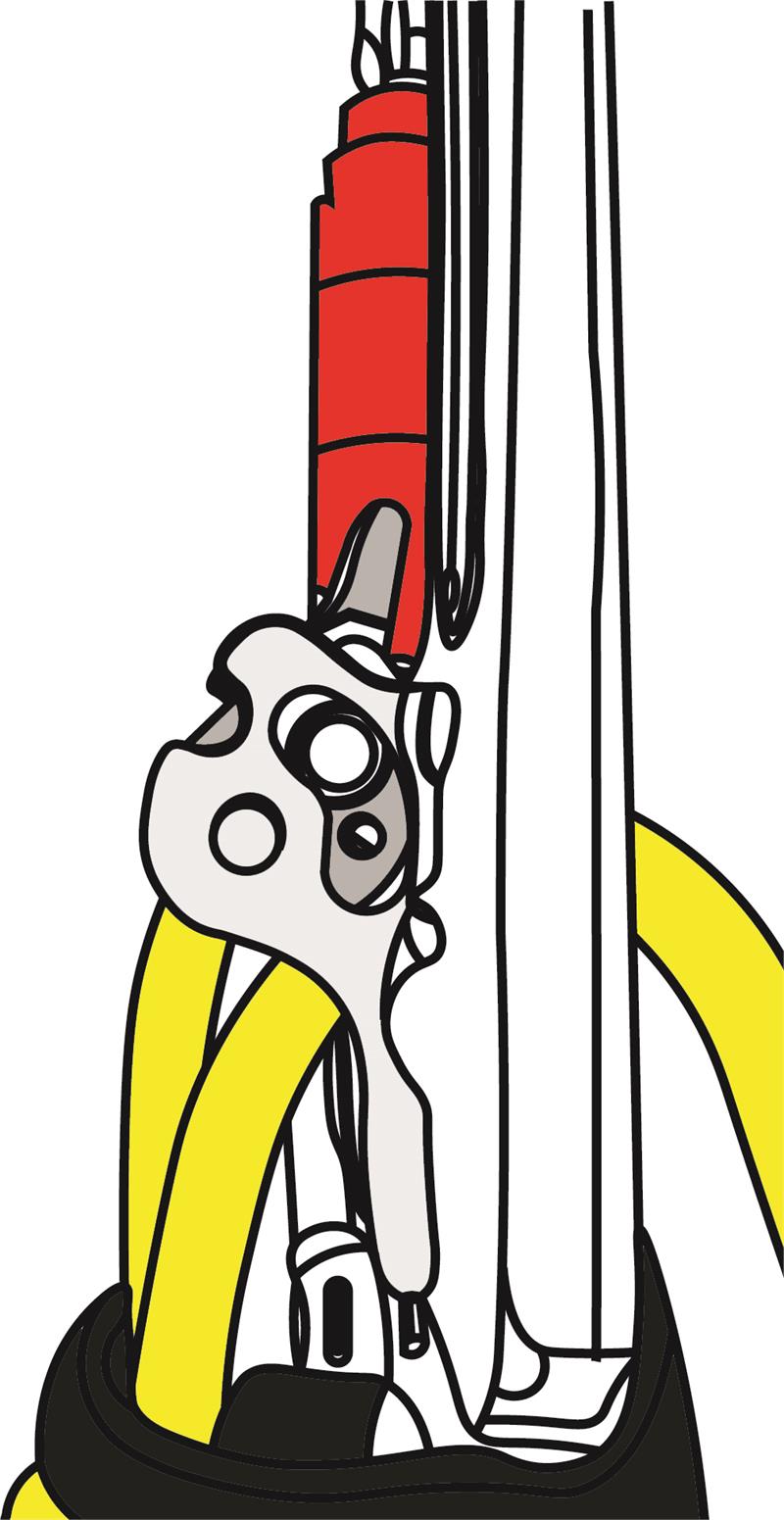

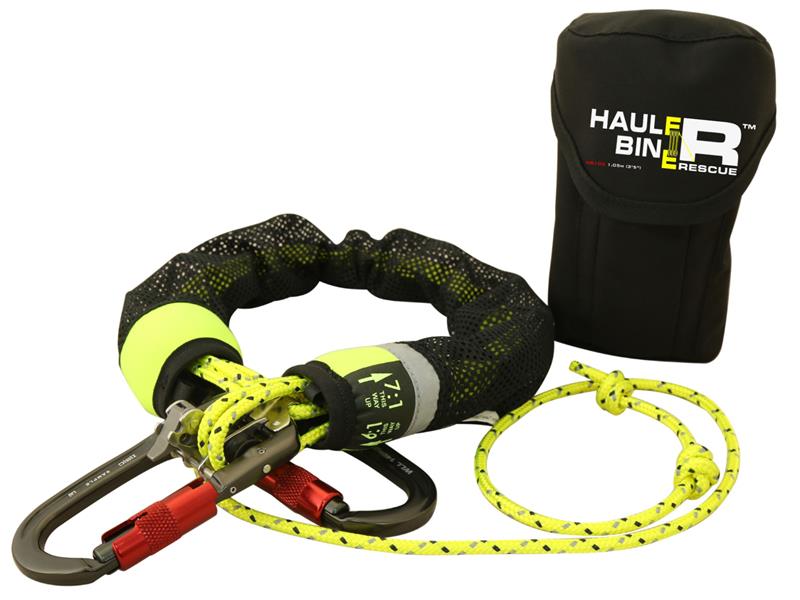

The HaulerBiner has three pulley wheels incorporated into each carabiner, creating a compact and lightweight 6:1 or 7:1 Mechanical Advantage system The HaulerBiner also has a purpose-designed progress capture cam with, an on/off position. The HaulerBiner utilizes purpose-developed 6mm (1/4″) rope, for strength and easy handling/best grip. The kit is supplied in a two-pouch bag, for easy deployment.
The HaulerBiner is load rated to 300 lbs. (140kg)but it has an MBS of at least 3500 lbs. (16kN)tested as a complete system. Kits are available in three standard lengths; 41″ (105cm), 65″ (165cm)or 118″ (300cm), with custom lengths available on request. The length of the system, when fully contracted is only 12″ (32cm)!
Description
The HaulerBiner can be used in a number of ways:
- As part of a pick-off system
- On a structure, pull down on the system and achieve a 6:1 (theoretical) MA
- When suspended in a harness, pull up on the system and achieve a 7:1(theoretical)
- As a tensioning system for short/low load lines
- As a stretcher management device, using two or more HaulerBiners to easily change or adjust the orientation of the stretcher
Light Use
| Model# | Description |
|---|---|
| 201408105 | 41″ (105 cm) |
| 201408165 | 65″ (165 cm) |
| 201408300 | 118″ (300 cm) |
For information go to: www.p65warnings.ca.govt
Specifications:
| Item | Description |
|---|---|
| DOWNLOADS |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| LENGTH | 41" (105 cm), 65" (165 cm), 118" (300 cm) |
