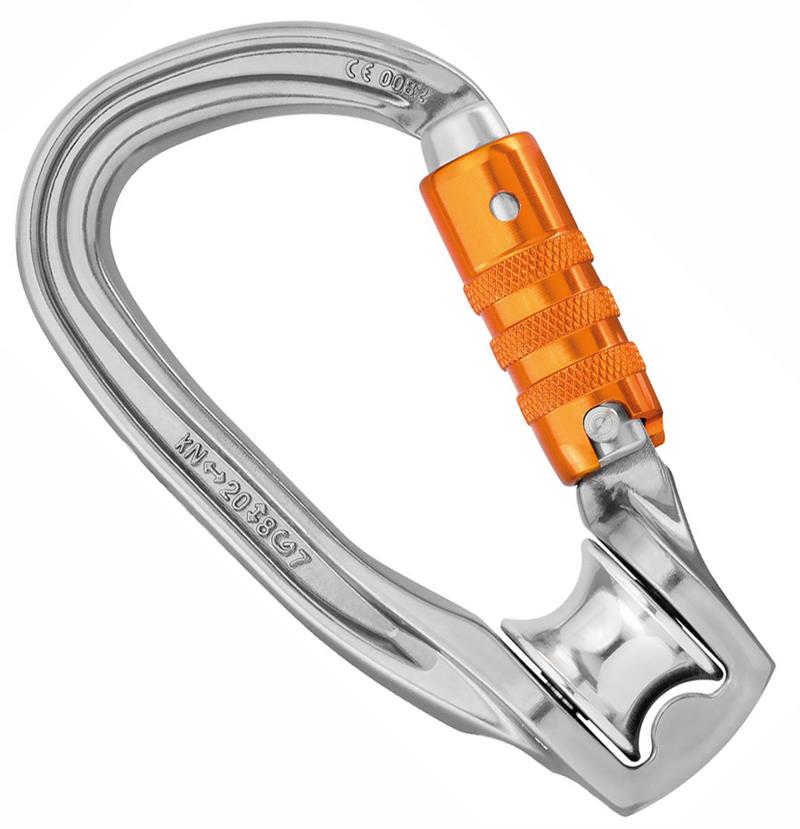

Petzl ROLLCLIP Z

$45.00 – $50.00

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: 3-Stage TRIACT-LOCK system or manual SCREW-LOCK system. Gate is on the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Clear
SKU: N/A Category:

Specifications:

Item Description
SPECS

Easier handling:

  • sheave mounted on sealed ball bearings for excellent efficiency
  • gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
  • may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
  • Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place



H cross-section of carabiner:

  • ensures an improved strength-to-weight ratio
  • protects markings from abrasion



Available in versions with or without TRIACT-LOCK locking system

Specifications

  • Material(s): aluminum
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave diameter: 18 mm
  • Maximum working load: 2 x 2 = 4 kN
  • Efficiency: 85 %
  • Major axis strength: 20 kN
  • Minor axis strength: 8 kN
  • Open gate strength: 7 kN

Additional information

Weight .4 lbs
Dimensions 3 × 3 × 3 in
STYLE

TRIACT-LOCK, SCREW-LOCK
