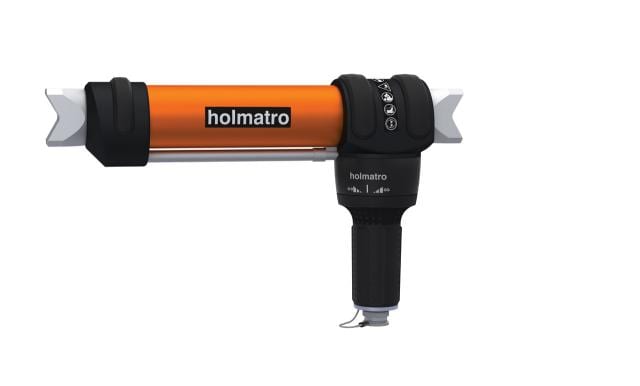

Ram RA 5313 CL

Category:

Description

Compact, lightweight ram – 5000 series. Lighter than ever without compromising on performance.

Standard supplied with:

Built-in Speed Valve
• Redesigned, ergonomic control handle with improved grip
• CORE Technology: quicker, safer, easier

Specifications:

Item Description
SPECIFICATIONS
Details
Articlenumber 150.032.120
Basic specifications
model RA 5313 CL
equipped with (connector type) CORE
max. working pressure 720 / 72 (bar/Mpa) 10443 psi
Performance
spreading force over full stroke 100 / 10.2 (kN/t) 22481 lbf
spreading stroke 250 mm 9.8 in
retracted length 415 mm 16.3 in
extended length 665 mm 26.2 in
directives 2006/42/EG

Specifications:

Item Description
GENERAL SPECIFICATIONS
General specifications
number of plungers 1
Dimensions, weight and temperature
weight, ready for use 7.8 kg 17.2 lb
dimensions (AxBxC) 256 x 100 x 415 mm 10.1 x 3.9 x 16.3 in
Norms
EN 13204 classification R100/250-7.8
NFPA 1936 compliant yes
EN 13204 compliant yes
NFPA 1936, HSF 100 / 10.2 (kN/t) 22481 lbf
NFPA 1936, LSF 100 / 10.2 (kN/t) 22481 lbf
