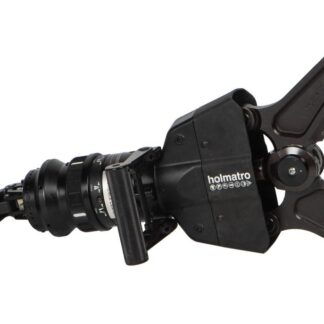

Combi Tool CT 5114 ST

For spreading, cutting and squeezing with one tool – CORE version.

Standard supplied with:

Description

Item

Description

SPECIFICATIONS

Details
Articlenumber	151.000.518
Basic specifications
model	CT 5114 ST
equipped with (connector type)	CORE
max. working pressure	720 / 72 (bar/Mpa)	10443 psi
Performance
max. spreading force	1350 / 137.7 (kN/t)	303492 lbf
theoretical calculated spreading force	740 / 75.5 (kN/t)	166359 lbf
min. spreading force (EN 13204)	33 / 3.4 (kN/t)	7419 lbf
spreading distance	362 mm	14.3 in
max. cutting opening	277 mm	10.9 in
max. squeezing force	34 / 3.5 (kN/t)	7644 lbf
directives	2006/42/EC
theoretical cutting force	268 / 27.3 (kN/t)	60249 lbf
Dimensions, weight and temperature
dimensions (AxBxC)	598 x 217 x 115 mm	23.5 x 8.5 x 4.5 in
weight (without hose)	8.4 kg	18.5 lb
weight, ready for use (hose connected)	9.6 kg	21.2 lb
Norms
EN 13204 classification	BK33/362-E-8.4
NFPA 1960, cutting capacity	A5 B5 C5 D6 E4 F3
NFPA 1960 compliant	yes
EN 13204, cutting capacity	1E 2E 3E 4E 5E
EN 13204 compliant	yes
NFPA 1960, HSF	40 / 4.1 (kN/t)	8992 lbf
NFPA 1960, LSF	30 / 3.1 (kN/t)	6744 lbf
prEN 13204 classification	CT3-33/362-E
Cutting performance
round bar (S235 acc. to EN 13204)	24 mm	0.9 in

FEATURES

Extremely compact & ultra-lightweight

Optimal performance to weight ratio

Very high spreading force and large spreading distance compared to size and weight
High cutting force and large cutting opening compared to size and weight

Multifunctional

Suitable for both cutting and spreading
Suitable for dive operations / under water use
Suitable for a variety of applications, ranging from forcible entry to extrication of persons trapped

Pump-operated model

The separate hand pump decreases the weight of the tool and increases maneuverability

360° rotatable aluminum carrying handle

Equipped with i-Bolt

Flat central bolt construction for better access to narrow spaces
Squeezes the blades together directly, which results in less blade separation and a better cutting performance
