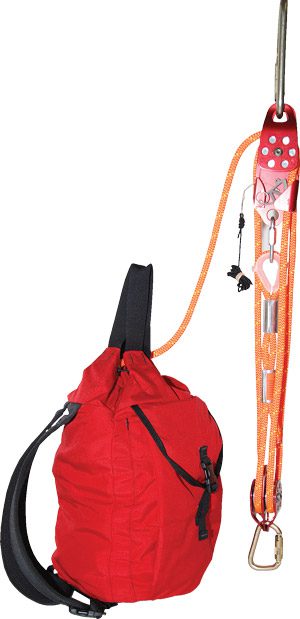

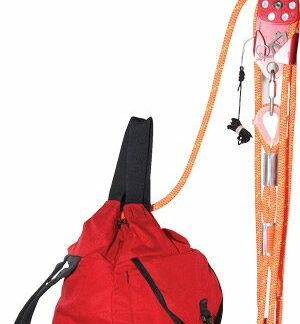

RescueTECH 7/16″ Extractor 4:1 Confined Space Rescue Kits

Description

FOR RESCUE– Used as 4:1 / 5:1 Block & Tackle or “piggy-backed” onto main rescue haul line. Reduces training needs for mechanical advantage systems. Great re-direct pulley with built-in safety. NO loss of haul due to slack in prusik cord or external camming safety.

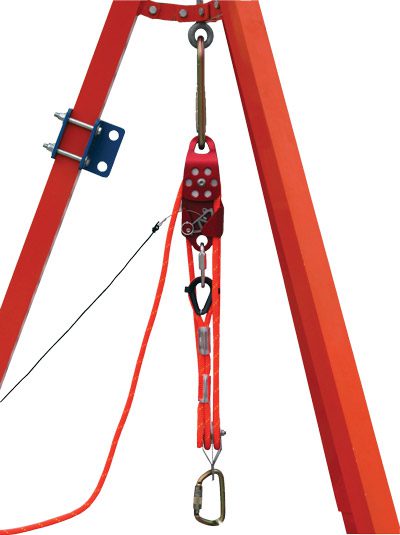

LIFTING SAFETY– Unit works as a hauling system with “deadman’s” safety. Included safety pin holds cam in either open (rope will run freely in both directions) or in safety position. Rope will move in hauling direction only and cannot be removed or fall out when safety is engaged. The EXTRACTOR CSR System may be used horizontally and can be attached to a haul line to act as a 4:1 / 5:1 hauling system.

REMOTE LOWERING CAPABILITY– The attached cable allows remote control of safety cam. This makes it possible to place the haul safe unit where it cannot be directly accessed. The Extractor design provides over 135 degree of hauling line movement. It does not limit hauling team to standing “in-line” with the rope system. The pulley sheaves are equipped with Oilite bushings and will accept ropes up to 1/2″ diameter. Tensile Strength: 10,000 lbf. 1/2″ EXTRACTOR 4:1 model shown in photo.

Basic System:

• Extractor CSR Pulley
• Double End Single Pulley, (RD)
• 7/16″ NFPA Rescue Lifeline
• OD50 Steel, Autolocking Carabiner
• RD70 Rigging Carabiner
• 8mm MR Link
• Storage Bag
