RT 1/2″ Extractor 4:1 Confined Space Rescue Kits

$762.95$945.95

Basic System:

Extractor CSR Pulley
RT Double Pulley, (RD)
1/2″ NFPA Rescue Lifeline
OD50 Steel, Autolocking Carabiner
RD70 Autolocking Carabiner
8mm MR Link
Storage Bag

Clear
SKU: N/A Category:

Description

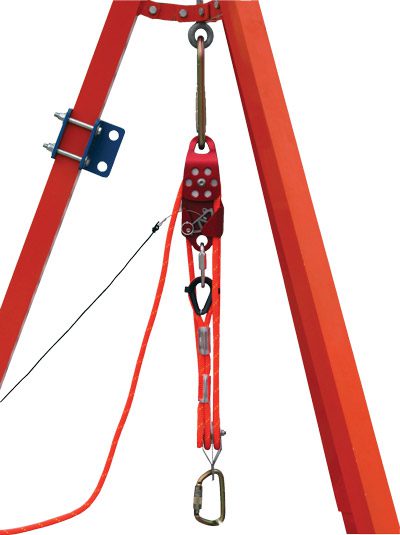

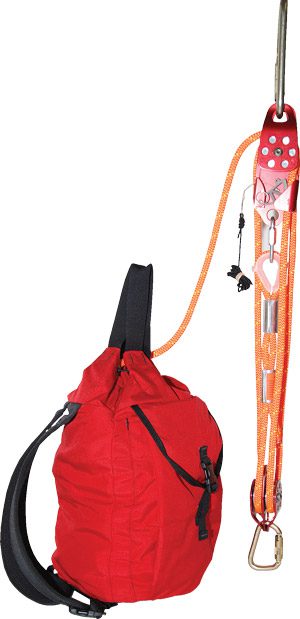

Confined Space Rescue Kit in Basic and Swivel Version

FOR INDUSTRY – Easy to use. Meets OSHA 1910.146 Mechanical Retrieval Device. Meets ANSI Z359.1 vertical lifeline.

FOR RESCUE- Used as 4:1 / 5:1 Block & Tackle or “piggy-backed” onto main rescue haul line. Reduces training needs for mechanical advantage systems. Great re-direct pulley with built-in safety. NO loss of haul due to slack in prusik cord or external camming safety.

LIFTING SAFETY- Unit works as a hauling system with “deadman’s” safety. Included safety pin holds cam in either open (rope will run freely in both directions) or in safety position. Rope will move in hauling direction only and cannot be removed or fall out when safety is engaged. Haul-Safe may be used horizontally and can be attached to a haul line to act as a 4:1 or 5:1 hauling system.

REMOTE LOWERING CAPABILITY- The attached cable allows remote control of safety cam. This makes it possible to place the haul safe unit where it cannot be directly accessed. The Extractor design provides over 135 degree of hauling line movement. It does not limit hauling team to standing “in-line” with the rope system. The pulley sheaves are equipped with Oilite bushings and will accept ropes up to 1/2″ diameter.

Tensile Strength: 10,000 lbf.

Additional information

Weight 24 lbs
Dimensions 24 × 24 × 10 in
STYLE

4:1 Extractor Kit 200', 4:1 Extractor Kit 150', 4:1 Extractor Swivel Kit 200', 4:1 Extractor Swivel Kit 150'

COLOR

ORANGE w/Yellow, BLUE w/yellow, RED w/Blue, WHITE w/Red, WHITE w/Blue
